Listener

/Users/max/Desktop/ST-DIST/Manuel-Sound-Trajectory/interface-illustration/image/listener@4x.png

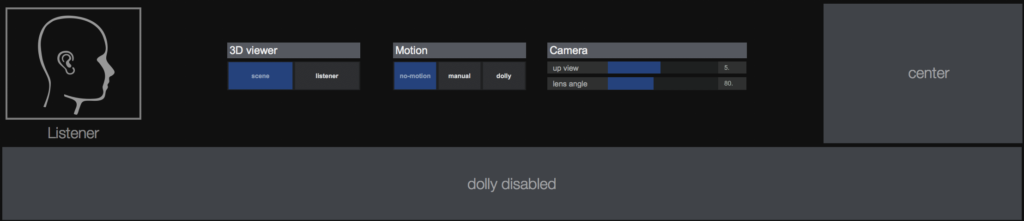

The Listener module defines the virtual listening position. Its coordinates are modifiable manually or defined by a trajectory.

This tool conditions the orientation and position of all sound sources.

3D viewer

In listener mode, the visualization of 3d space is displayed from the listener point of view.

cam z  height of the camera in relation to the trajectory
Lens angle view angle of the camera

Manuel motion

cursor activates the moving of the listener with the mouse on the 3d window

/Users/max/Desktop/ST-DIST/Manuel-Sound-Trajectory/interface-illustration/listener/listener-manuel.png

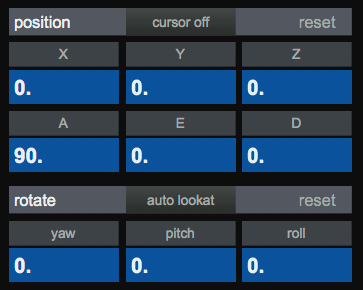

position xyz listener coordinates in XYZ
position aed listener coordinates in AED
rotate listener orientation in 3d space

This module is fully accessible by OSC and can therefore be controlled by the headtracker of a virtual reality headset.

Dolly motion

Path path model selection to follow
Seq test test sequencer
Index index of position on the trajectory
